Die Casting Tooling

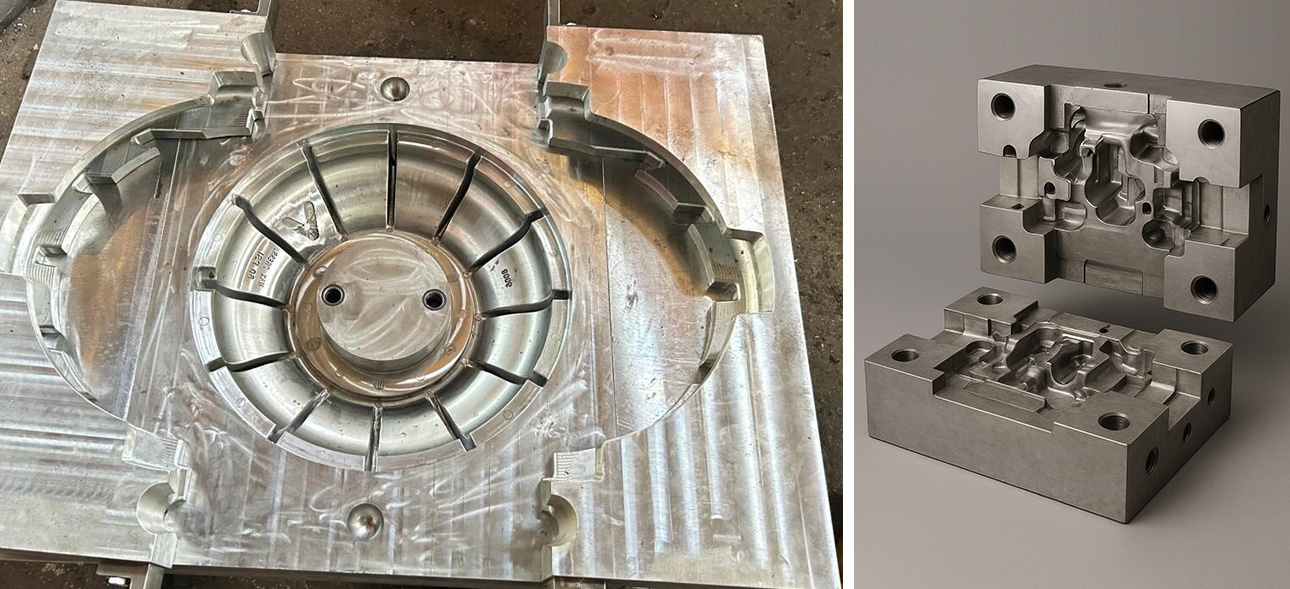

Gravity Die Casting Dies | Precision Tooling for Non-Ferrous Castings
Introduction:
We design and manufacture high-quality Gravity Die Casting Dies used for producing dimensionally accurate and consistent non-ferrous castings (Aluminium, Brass, Bronze, etc.). Our dies are engineered for smooth filling, optimum cooling, and long production life, ensuring high integrity castings with excellent surface finish.
It offers :
- Better surface finish
- Higher strength
- Better dimensional accuracy
- Compared to sand casting
Our Gravity Die Casting Die Capabilities
We manufacture dies for:
- Automotive & EV Components
- Engine Housings
- Valve Bodies & Pump Components
- Electrical & Lighting Parts
- Machinery Components
- Custom Industrial Parts
Die Materials We Use
To ensure durability, wear resistance, and thermal stability:
- H13 / H11 Tool Steel
- D2 Steel
- EN Series Alloy Steels
- Beryllium Copper Inserts (optional) for heat balance
- Heat Treatment & Nitriding for extended die life
Die Features
- Optimized gating & riser system design
- Uniform metal flow for defect-free castings
- Efficient cooling channel placement
- Manual or hydraulic opening & closing options
- Easy ejector pin system for smooth part removal
Why Choose Us?
- In-house Design, Tooling, and CNC Manufacturing
- Skilled Design Team using CAD/CAM/CAE
- High precision machining centres for tight tolerances
- Strong service support & maintenance assistance
- Consistent Quality with on-time delivery

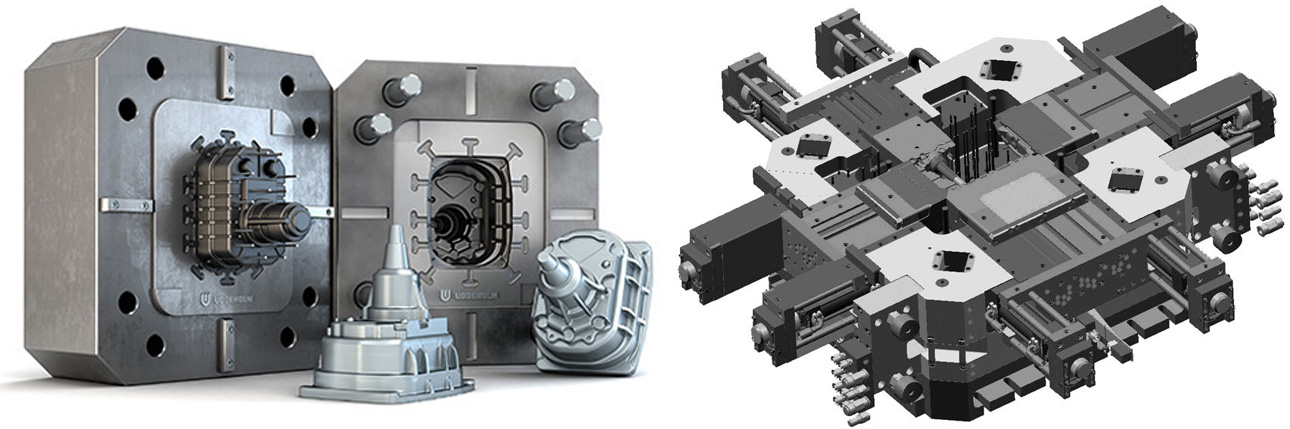

HPDC Dies | High Pressure Die Casting Tooling Solutions
Introduction:
We manufacture High Precision HPDC Dies for Aluminium and Zinc Die Casting applications. Our dies are designed for high-speed production, excellent surface finish, and long tool life. With advanced CAD/CAM design and CNC machining, we ensure that every die delivers consistent, high-quality castings with minimal defects and efficient cycle time.
This process is ideal for:
- High volume production
- Complex shapes
- Thin-walled components
- Superior dimensional accuracy
Our HPDC Die Capabilities
We produce tooling for:
- Automotive & EV Components
- Engine & Transmission Parts
- Electrical & Electronics Housings
- Lighting Components
- Industrial & Machinery Parts
- Consumer & Household Metal Components
Die Materials We Use
To ensure durability and thermal stability:
- H13 / H11 Alloy Tool Steel (Heat Treated)
- Premium Grade Die Steel Blocks
- Beryllium Copper Inserts for Thermal Balance
- Surface Hardening & Nitriding Treatments
Die Design Features
- Optimized gating & runner design
- Proper venting to avoid gas porosity
- Balanced cooling channel arrangement
- Ejector pin system for smooth part removal
- Split, Multi-slide & Core pull mechanisms
- High CNC Machining Accuracy ±0.01mm
Benefits
- High strength & precision cast components
- Excellent surface finish
- Reduced machining cost on final part
- Increased die life with thermal management
- Faster production cycle times
Why Choose Us?
- In-house Design, Tooling & CNC Machining
- Strong technical engineering support
- Proven experience with complex dies
- Quality assurance & test layout support
- On-time delivery and after-sales assistance
