Sand casting & Shell Moulding Tooling

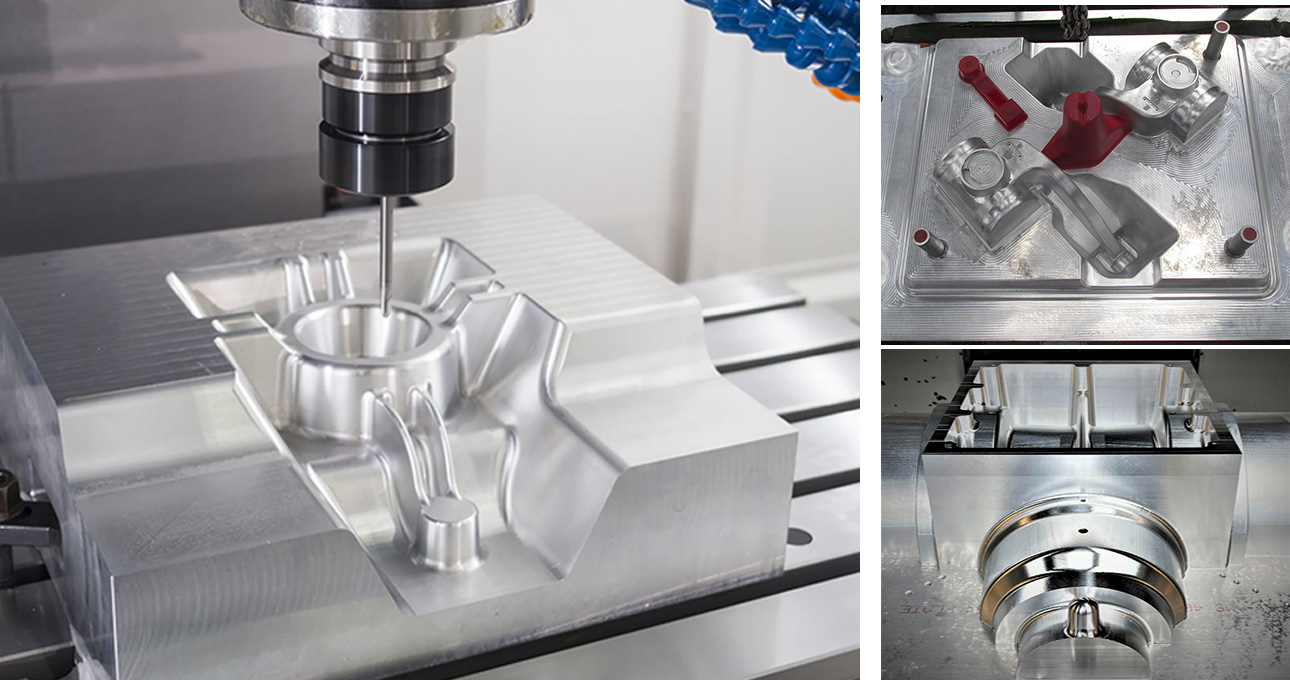

Sand Casting Patterns | Precision Patterns for Quality Castings
Introduction:
We specialize in manufacturing high-quality sand casting patterns designed for durability, accuracy, and repeatable production. With deep industry experience, we deliver patterns that ensure smooth moulding, excellent dimensional control, and high casting reliability.
Types of Patterns We Offer
- Aluminium Patterns : Long-lasting and stable during repeated use, Suitable for medium & high-volume production
- Metal (Cast Iron / Steel) Patterns : For high precision and large scale continuous production
- Match Plate Patterns : Maximizes productivity & reduces cycle time
- Cope & Drag Patterns : Ensures consistent alignment for mould halves
- Split Patterns : Used for complex shapes requiring two-part moulding
Industries We Serve
- Automotive Components
- Valves & Pumps
- Agriculture Machinery
- Industrial Equipment
- Power & Energy Sector
- General Engineering Foundries
Why Choose Us?
- High dimensional accuracy
- Experienced pattern makers
- On-time delivery
- Precision CNC machining capability
- Smooth moulding surface finish
- Cost-effective, performance-focused design

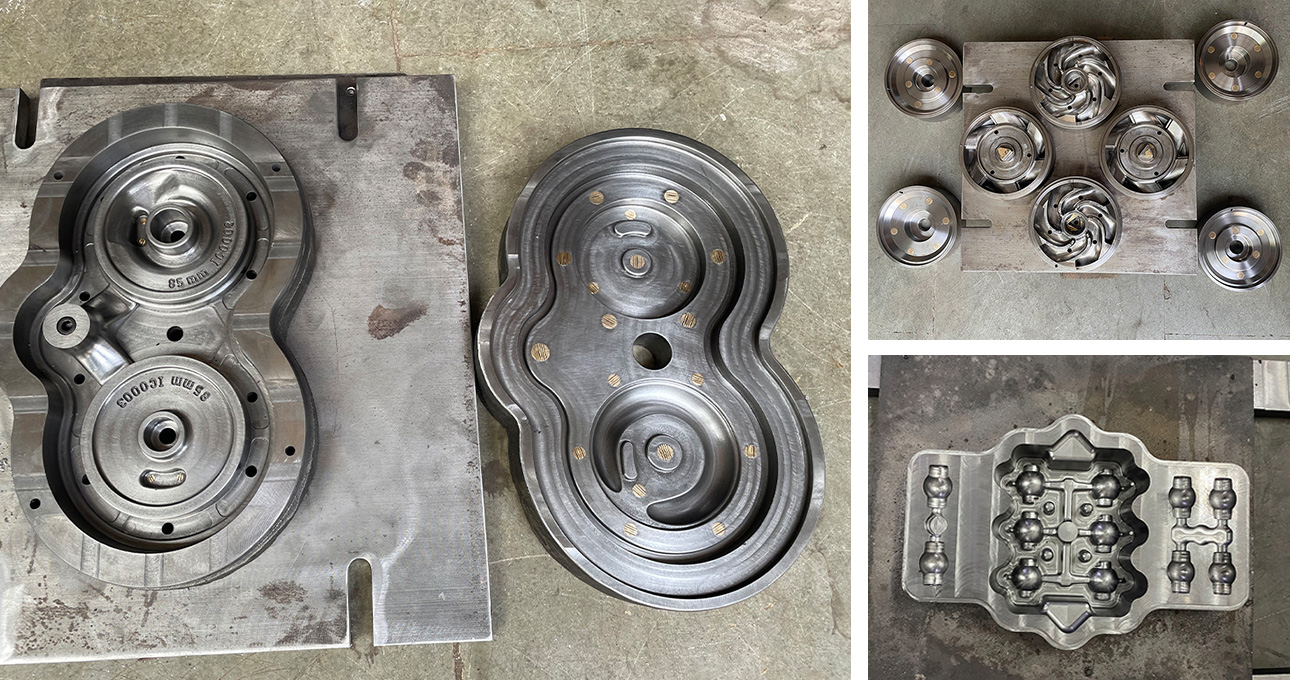

Shell Mould Dies | High Precision Dies for Shell Moulding
Introduction:
We manufacture high-performance Shell Mould Dies designed for accurate, consistent, and high-speed shell moulding production. Our dies are engineered with precision machining, heat-treated materials, and optimized gating systems to ensure excellent dimensional accuracy, smooth surface finish, and long tool life.
This method delivers:
- Fine surface finish
- High dimensional stability
- Faster production cycles
- Lower machining cost on final components
Materials Used
We manufacture dies using:
- Tool Steel (H13 / D2 / P20)
- Alloy Steel
- Cast Iron (High Grade)
- Customized Materials as per Requirement
These materials are selected for durability, heat resistance, and precision stability.
Key Features
- CNC machined cavity for high accuracy
- Durable & heat-resistant die surfaces
- Optimized gating & venting design
- Consistent shell thickness control
- Long production life cycles
- Suitable for small & large batch casting
Applications
Our Shell Mould Dies are widely used for producing:
- Valve & Pump Components
- Automotive Parts
- Engine Components
- Hydraulic Parts
- Railway & Industrial Machinery Spares
Why Choose Us?
- In-house Design & CNC Machining
- Experienced Tool & Die Engineering Team
- Support for Prototype to Mass Production
- Reliable Quality & Timely Delivery
